Examples

Some UML diagrams of sphinx-pyreverse.py

Classes diagram

RST code for sphinx-pyreverse class diagram

To generate a pyreverse classes diagram in you rst output simply put the following, replacing the sphinx_pyreverse with the module you want the diagram for.

.. uml:: sphinx_pyreverse
   :classes:

The following output also uses pyreverse colorized and ancestors options by specifying the following in your Sphinx conf.py

# sphinx-pyreverse switches
sphinx_pyreverse_colorized = True  # colour the graphs
sphinx_pyreverse_all_ancestors = True # give more Sphinx context

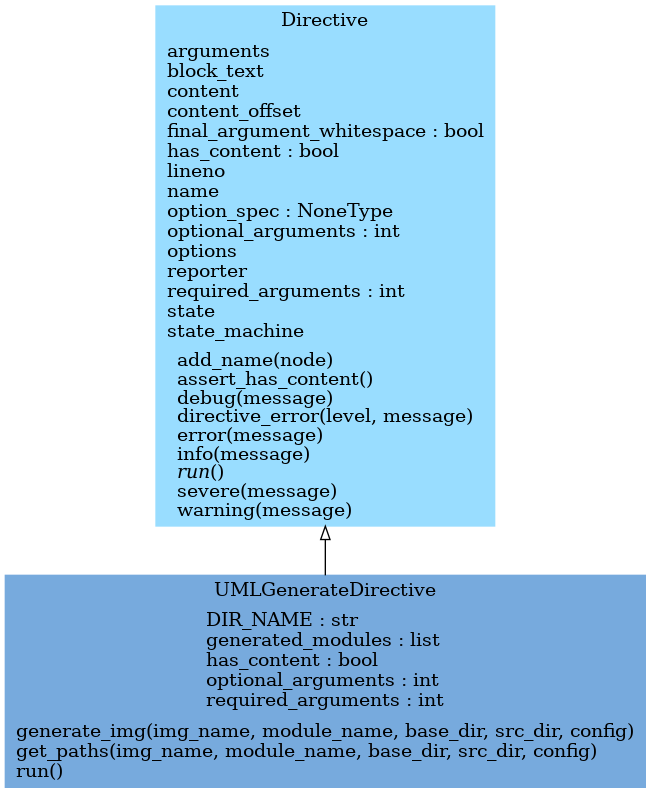

sphinx-pyreverse classes output:

With the above rst spec and conf.py config you get:

Packages diagram

RST code for sphinx-pyreverse package diagram

To generate a high-level packages overview graph simply use the following RST:

.. uml:: sphinx_pyreverse
   :packages:

The following output also uses pyreverse colorized and ancestors options by specifying the following in your Sphinx conf.py

# sphinx-pyreverse switches
sphinx_pyreverse_colorized = True  # colour the graphs
sphinx_pyreverse_all_ancestors = True # give more Sphinx context

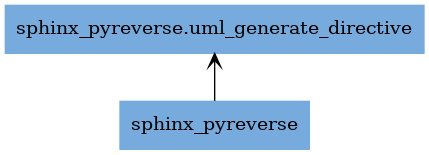

sphinx-pyreverse packages output:

With the above rst spec and conf.py config you get:
